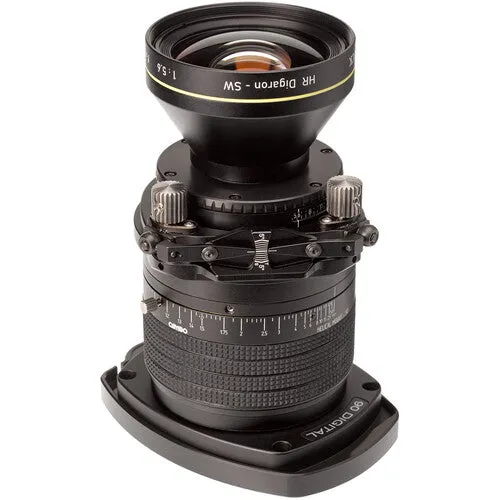

The Cambo WTSA-892X Long Barrel Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5.6/90 HR-SW Digaron lens with Aperture Only mounted in a helical focusing mount. This combination allows for use on the PhaseOne XT camera body without vignetting.

This version has a long barrel construction. without rear extension unit. It also features a helical mount with a 25mm displacement for close-up focusing.

This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs up to 5 degrees tilt up and down and 5 degrees swing left and right, while both swing and tilt can be set independently, separately but also in combination.

The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.

 The WTSA-892X fits to all Cambo Wide cameras with SLW adapters. For use without vignetting on Cambo WRS cameras we advise the use of the WTSA-890 or WTSA-891 in short barrel configuration.
